Description
Why Choose Our DIY Wood Sim Racing Rig

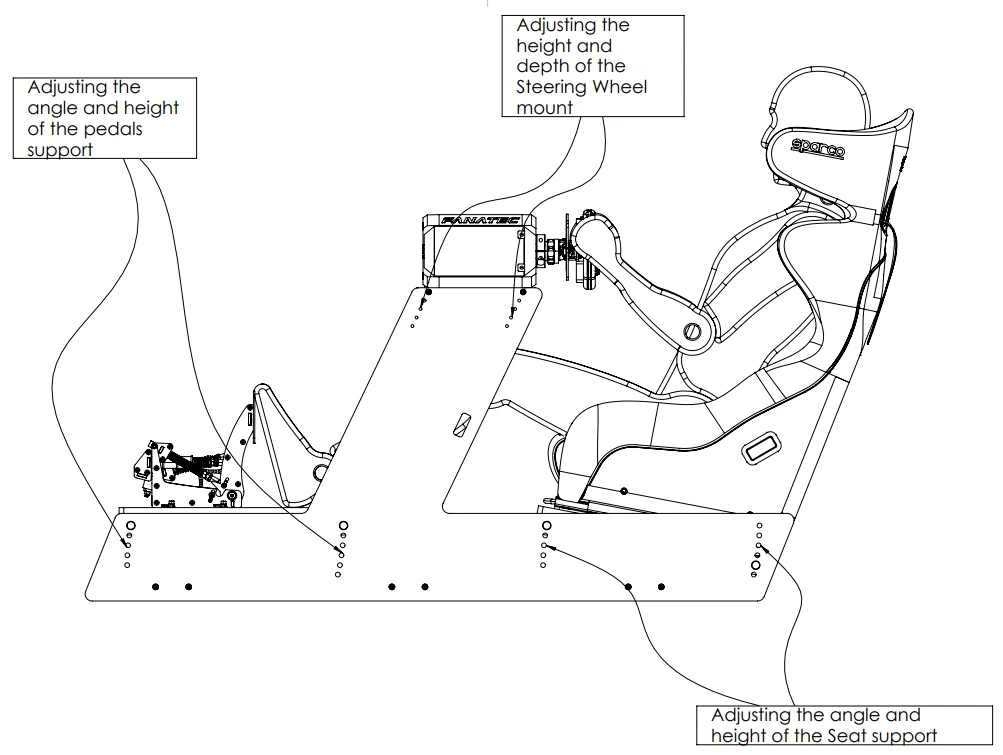

Fully Adjustable Ergonomics
Don’t adapt to your rig; make your rig adapt to you.
GT & Rally Optimized Ergonomics: Designed specifically for a high-performance upright driving position. Perfect for GT3, Endurance, Rally, and street car simulations.
Adjustable Wheel Deck: Fine-tune your steering position with precision height and depth adjustments. Get your wheel exactly where you need it for maximum control during heavy cornering.
Multi-Angle Seat Support: Adjust both the height and the tilt (angle) of your seat. Find the perfect balance between comfort for long endurance stints and the aggressive stance needed for rally stages.
Customizable Pedal Tray: The pedal base is fully adjustable in height and angle. Match the pedal feel of your favorite GT3 or Rally car for more consistent braking and throttle modulation.
“Stress-Free” Assembly Experience
You don’t need to be a master carpenter to succeed.
Comprehensive Step-by-Step Guide: A detailed PDF manual guides you through every single phase, from the first cut to the final bolt.
3D Animated Video Tutorial: Visualize the entire build with a high-quality 3D animation that makes assembly intuitive and fun.
Complete Bill of Materials (BOM): A precise shopping list of all screws, bolts, and hardware required — no more second trips to the hardware store.

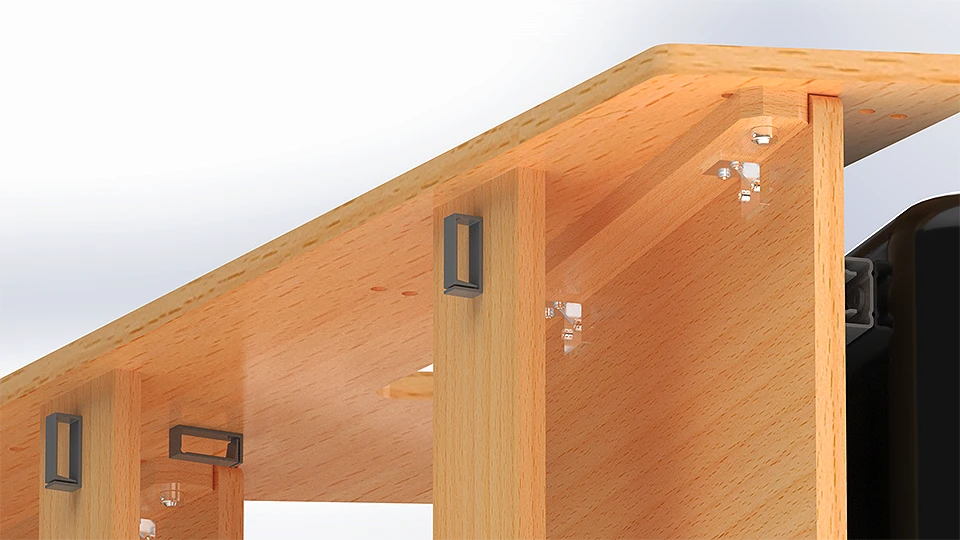

Integrated Cable Management
Say goodbye to “cable spaghetti.” The chassis features dedicated internal routing paths to keep your USB and power cables hidden and organized for a clean, professional “boutique” look.

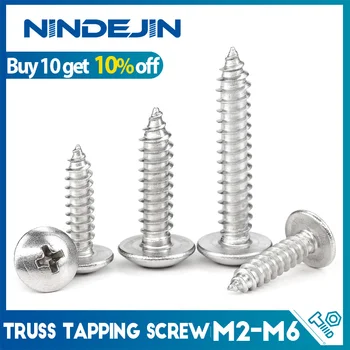

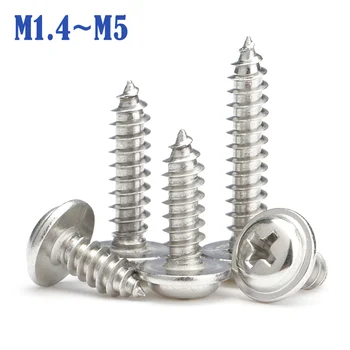

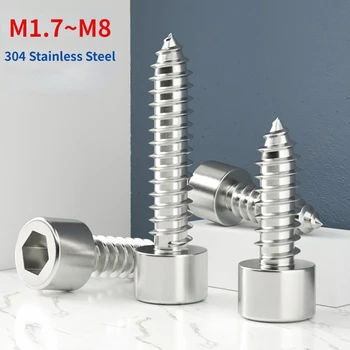

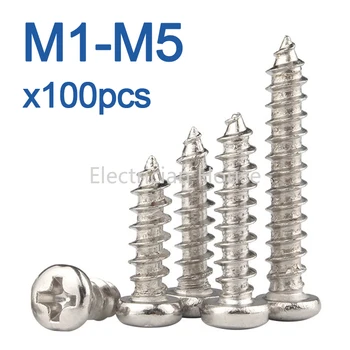

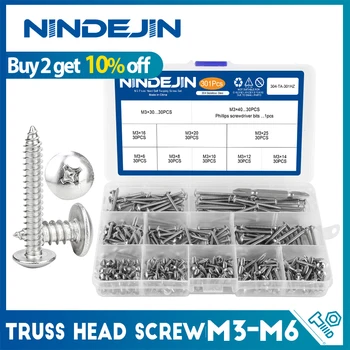

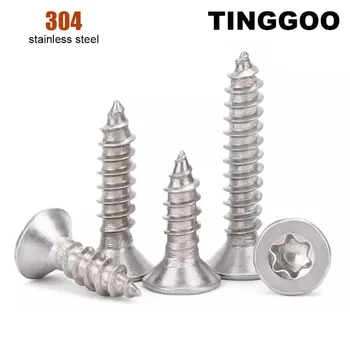

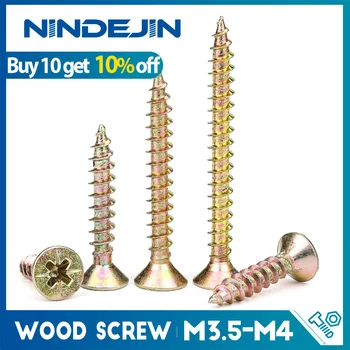

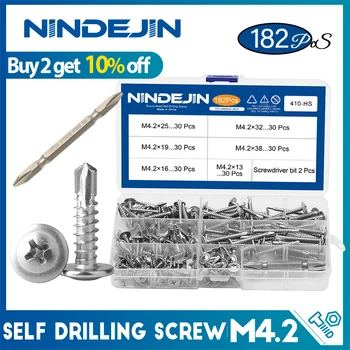

HARDWARE SCREWS

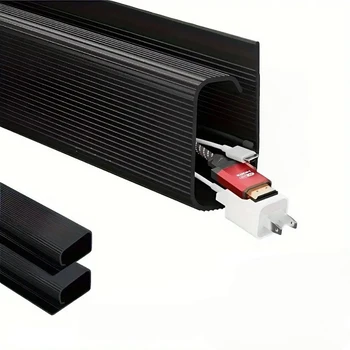

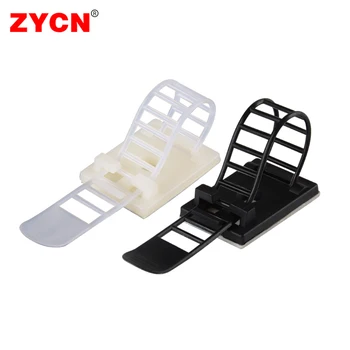

CABLE MANAGEMENT

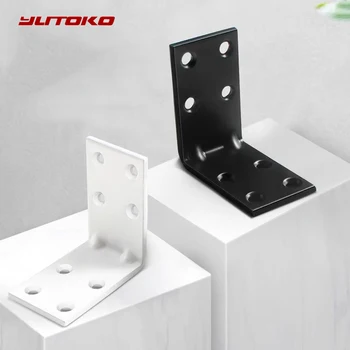

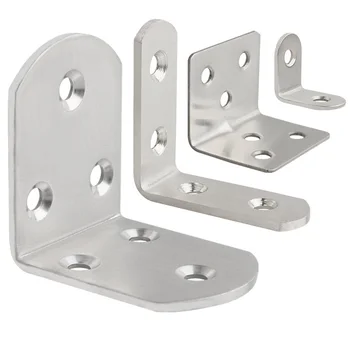

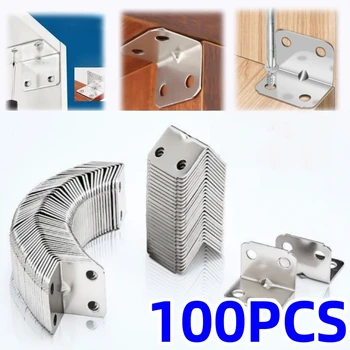

WOODEN BRACKET
Additional components
3mm Sound-Absorbing Noise Sponge Foams (alternative link)
Place on the side of the steering wheel mount to absorb vibrations and prevent noise
3mm Sound-Absorbing Noise Sponge Foams
Place on the side of the steering wheel mount to absorb vibrations and prevent noise

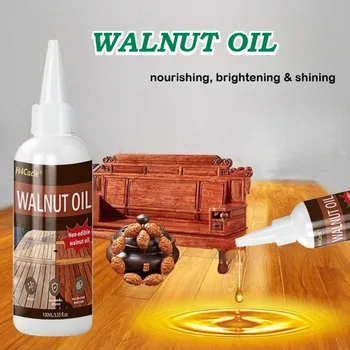

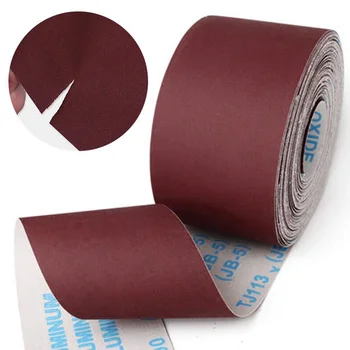

FINISHING

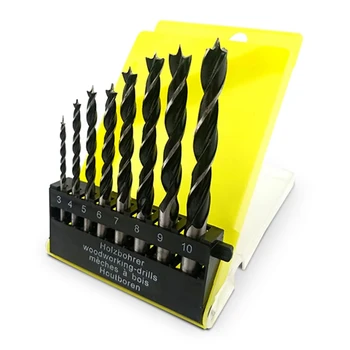

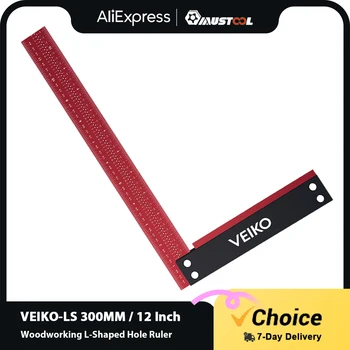

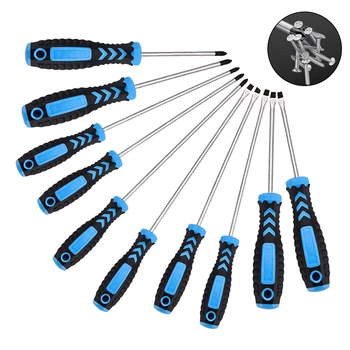

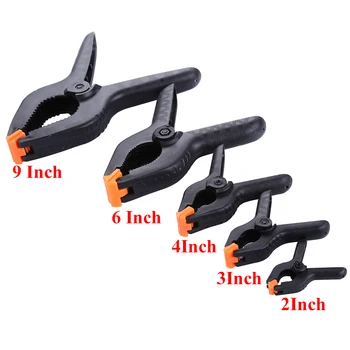

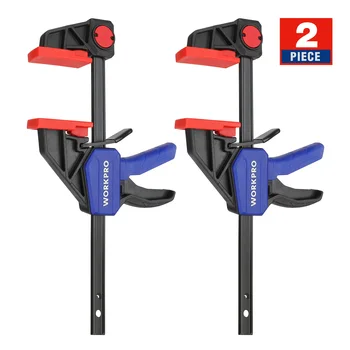

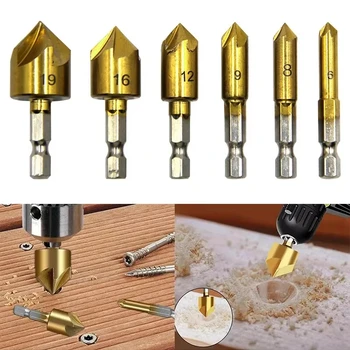

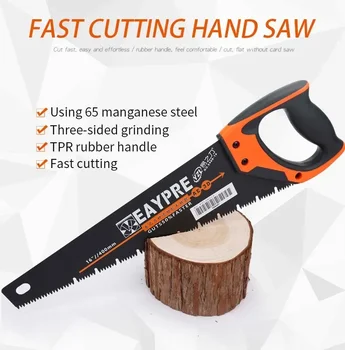

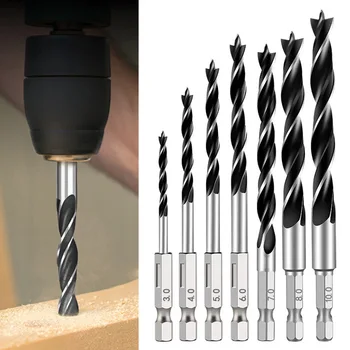

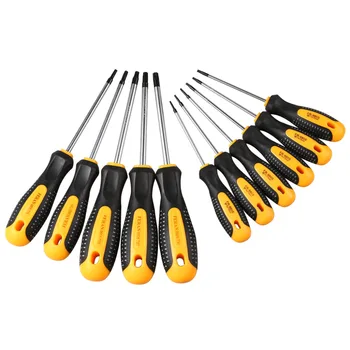

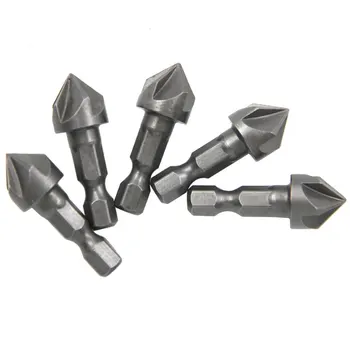

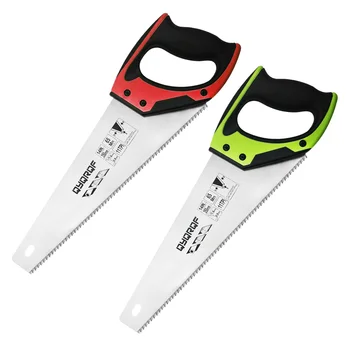

MACHINING AND MOUNTING
Find what you need in the DIY Tools section.
GENERAL QUESTIONS
This is our most asked question! Everything you need is listed in the BOM (Bill of Materials). You can find it in two places:
Directly within the BOM section of the product page.
Inside the comprehensive Assembly PDF included with your purchase. It includes exact quantities, dimensions, and even direct sourcing links to save you time.
- You can also find many parts on our DIY Tools page.
Ease of Assembly: 5/10. If you have basic DIY skills, you can build this. The assembly is straightforward thanks to our detailed exploded views and the fact that most parts are “bolt-on.” No complex machining is required.

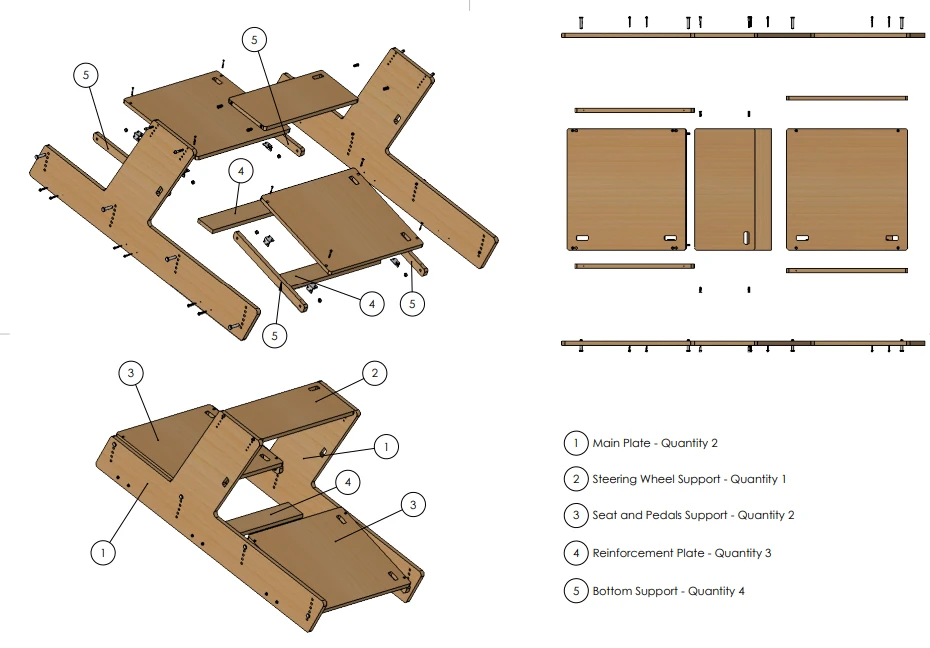

Yes! The pack includes a professional PDF documentation with exploded views, a full Bill of Materials (BOM) with purchase links, and technical drawings to ensure a smooth “no-headache” assembly process.
Yes! The thick plywood panels and reinforced geometry are designed to handle high-torque wheelbases. For wheels over 10Nm, we recommend using the 18mm or 20mm board thickness for maximum stiffness.

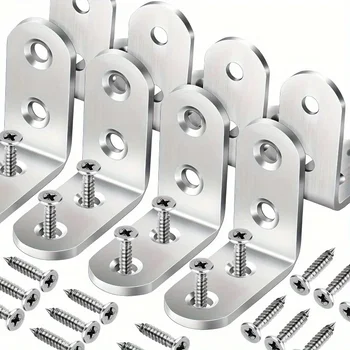

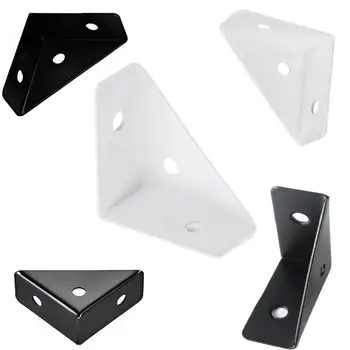

You can also add brackets under the steering wheel support.
If you have all the materials ready, the assembly takes approximately 4 to 6 hours for a hand-build, and about 2 hours if the parts are pre-cut by a CNC machine.
While not mandatory, we recommend applying at least one coat of clear varnish or floor paint. This protects the wood from sweat and humidity, ensuring your rig lasts for years.

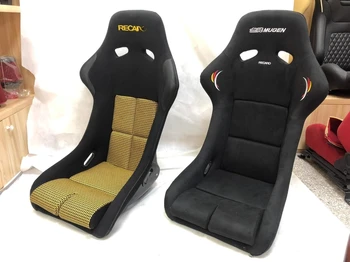

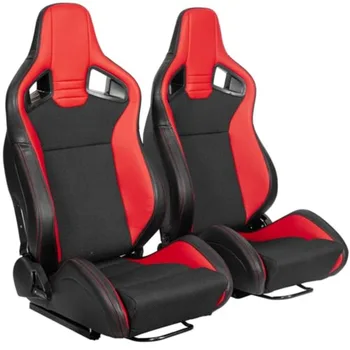

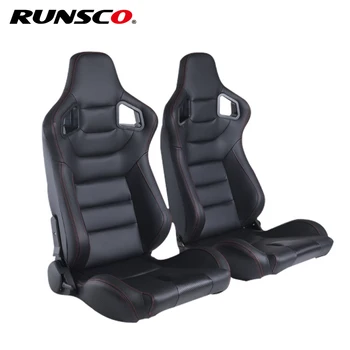

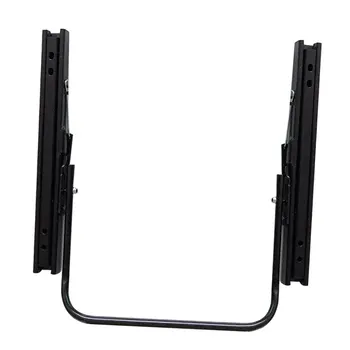

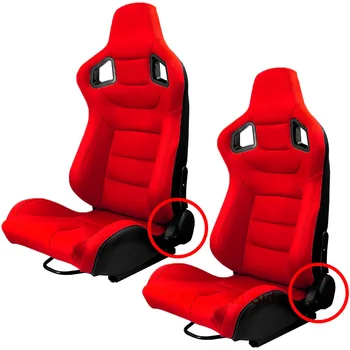

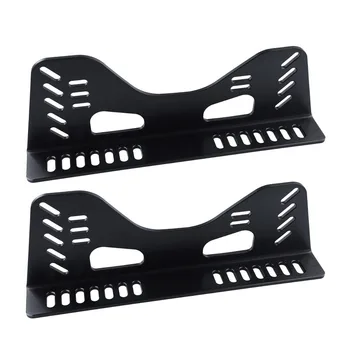

The rig is designed to be universal. Most side-mount or bottom-mount racing seats (with standard sliders) will fit perfectly on our adjustable mounting plates.
Specifications

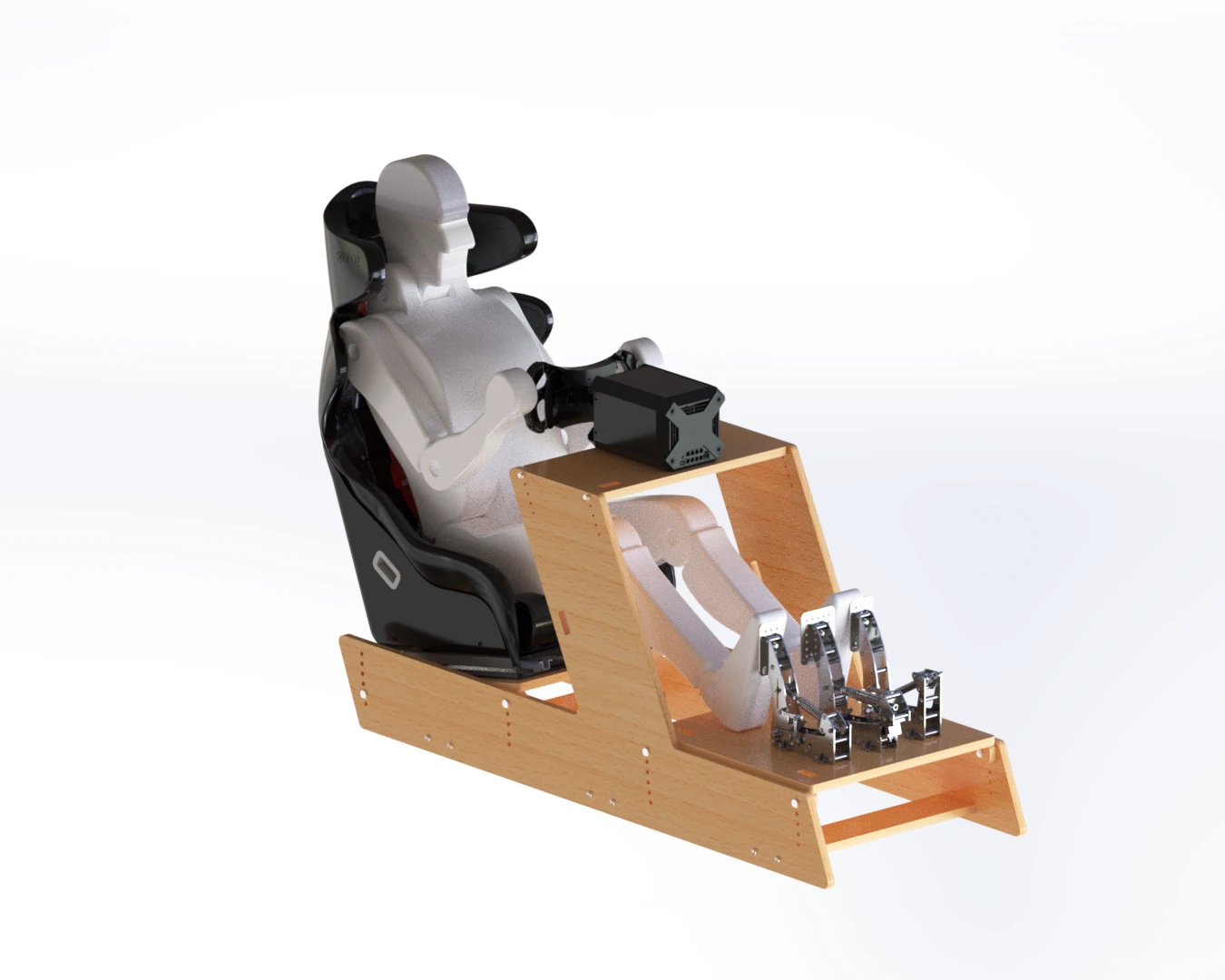

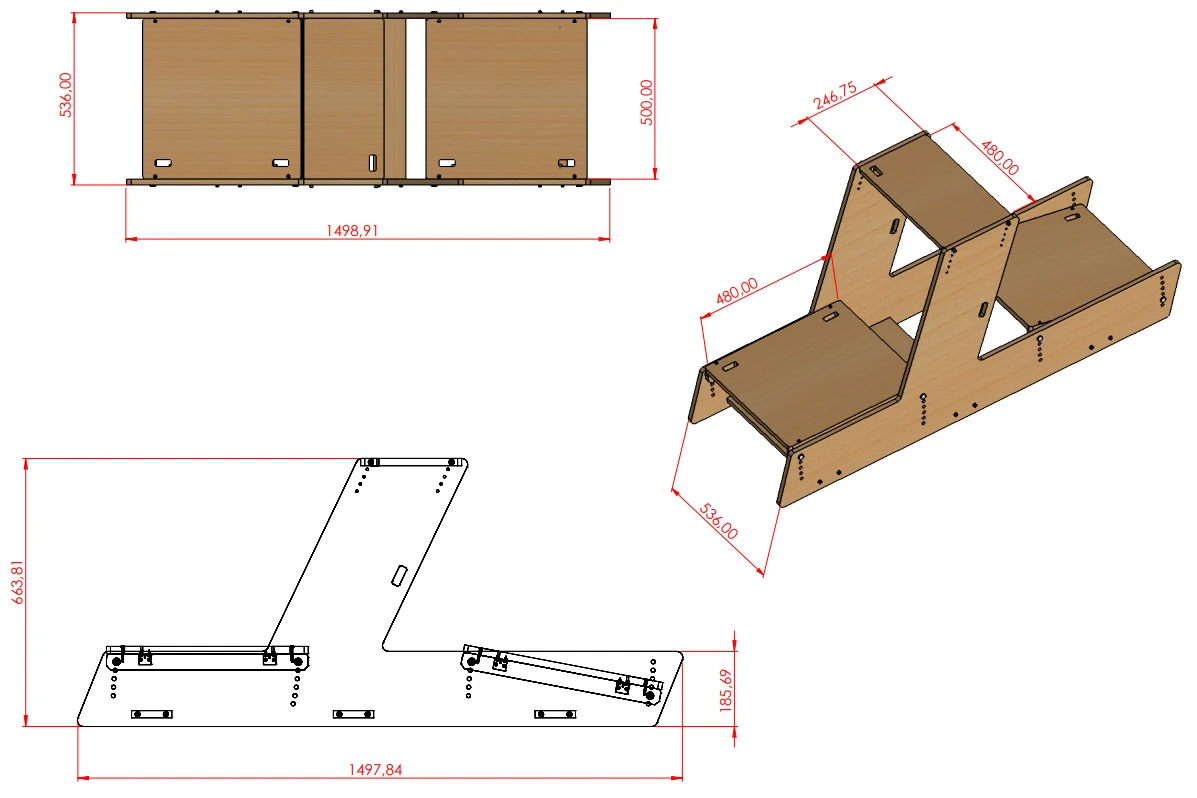

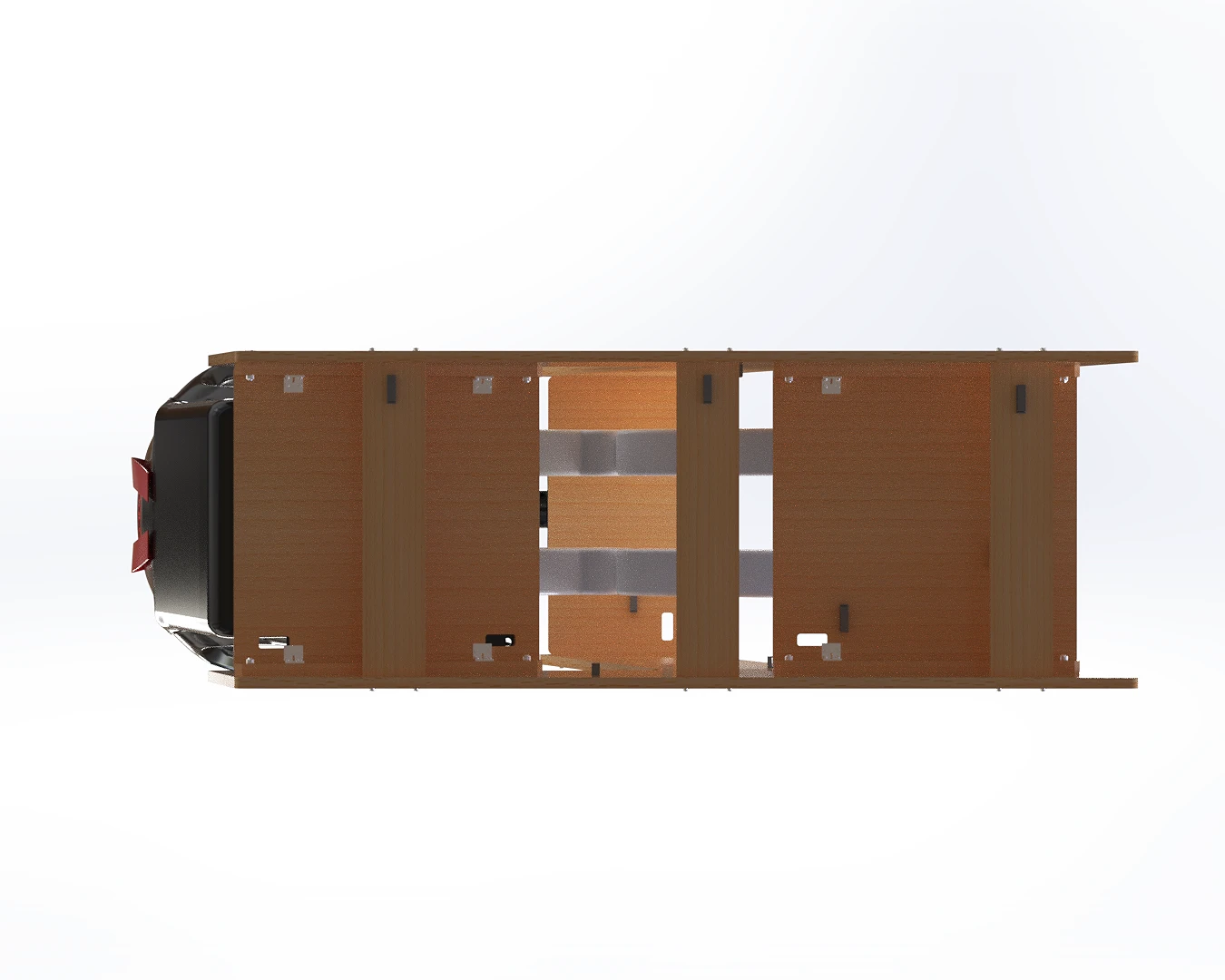

The chassis measures 1500mm (59″) in length, 536mm (21″) in width, and 663mm (26″) in height.
The layout is optimized to fit on a single sheet of 2440mm x 1100mm (approx. 96″ x 43″).
We highly recommend using Birch Plywood or any other high-density hardwood. Avoid low-grade construction lumber or OSB for better rigidity.
The official design is based on 18mm (3/4″) thickness. However, you can use boards ranging from 15mm to 20mm (5/8″ to 13/16″).
Note: Our hardware list is calculated for 18mm boards. If you choose a different thickness, remember to adjust your bolt lengths accordingly (+/- a few millimeters).
Performance & Comfort

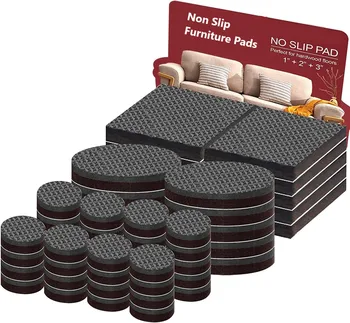

To eliminate noise, use the sound-absorbing pads listed in the BOM (Bill of Materials). Place small cutouts between the wooden panels at the joint interfaces to prevent wood-on-wood contact during heavy Force Feedback.
The chassis is engineered to comfortably support drivers up to 1.95m (6’5″) tall and weighing up to 150kg (330 lbs).

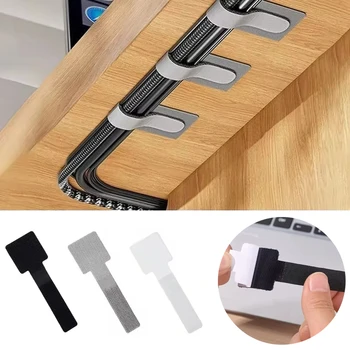

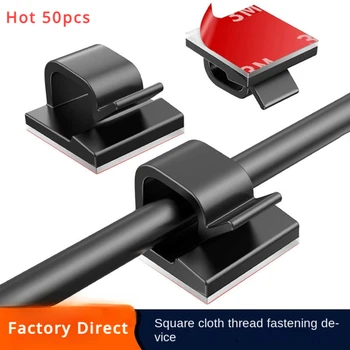

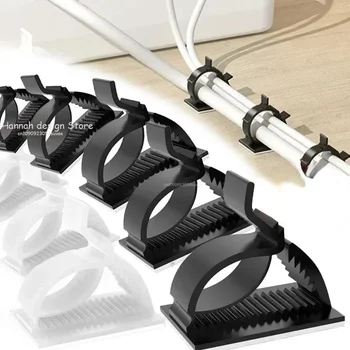

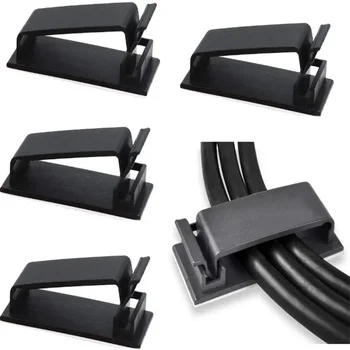

The rig features a clean setup using self-adhesive plastic clips (see product photos) attached to the bottom and inner panels. This allows you to route all USB and power cables out of sight.
Assembly & Hardware

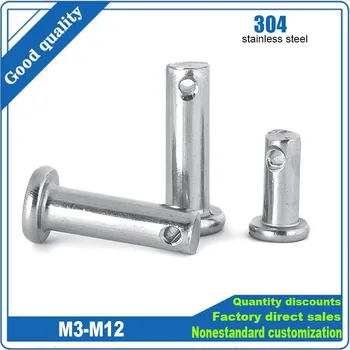

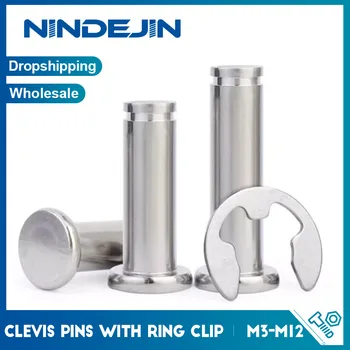

Both the seat and the pedal tray use the same interchangeable mounting plate system. They are secured using a locking pin (goupille) and tightened with an M10 clamping handle for quick and tool-less adjustments.

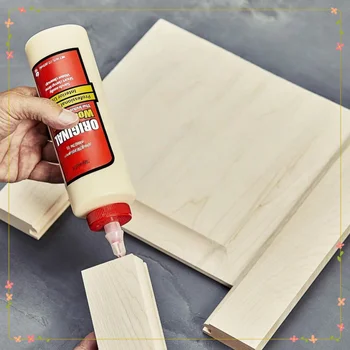

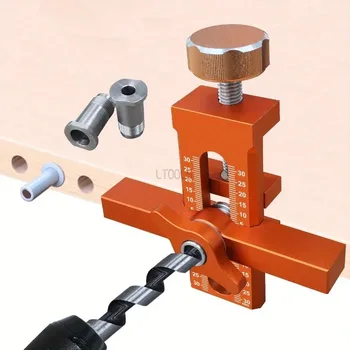

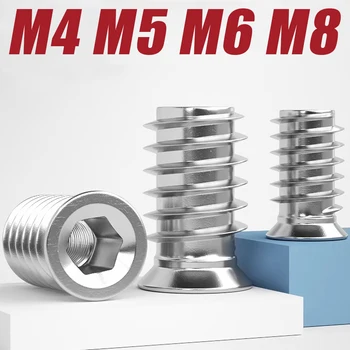

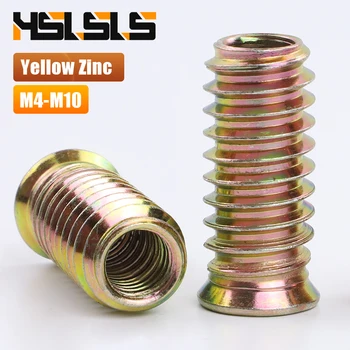

Yes. We strongly recommend applying a drop of wood glue or Super Glue inside the hole before screwing in the insert nuts. This fuses the metal to the wood fibers and prevents them from loosening over time due to vibrations.
